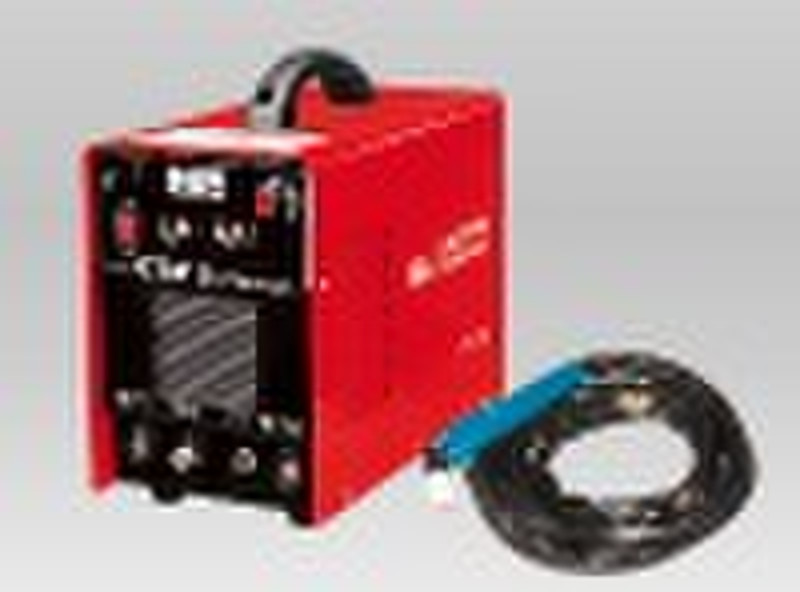

CT-416 inverter DC MMA/TIG/CUT welding machinery

Characteristic: 1. Multi function: TIG,MMA and cutting, 3 function in one welder/cutting machine,/mining machine. 2. Electronic conversion function, steady current, centralized arc, can work on all kinds of metal. 3. it can weld 2.5-3.2 rod for MMA welding equipment. 4. Air plasma cutting, easy operation, suit for cutting all kinds of sheet metal. 5. Compact and light, easy instalment and movement, 6. Smart circuit design, simple structure, particular technological, safety and reliability. Specification: 1.Rated input voltage(V): Single phase 220V/50/60HZ. 2.Rated input capacity(KVA): 4.8 3.Rated output current(A)TIG: 160 4. Rated output current(A)---MMA: 150 5. Rated output crttent(A)---CUT: 40 6. Output no-load loss(V)---TIG: 62 7. Output no-load loss(V)---MMA: 62 8. Output no-load loss(V)---CUT: 250 9. Current adjustment range(A)---TIG: 10-160 10.Current adjustment range(A)---MMA: 10-150 11.Current adjustment range(A)---CUT: 20-40 12.Welding voltage(V)---TIG: 16 13.Welding voltage(V)---MMA: 26 14.Welding voltage(V)---CUT: 96 15. Air pressure(Pa): 0.4 16. Air-flow(L/min)---TIG: 2-5 17. Air-flow(L/min)---CUT: 80 18. Rated duty cycle(%)l: 60 19.Cutting thickness(mm): 1-12 20.Weight(Kg): 14 21.Dimension(mm)(L×W×H): 432×204×302
